YCH7018 Chimes Nicht mehr im Verkauf

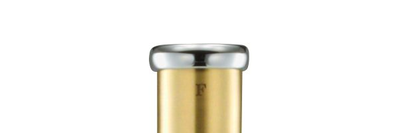

Head Cap

The head cap design provides richer fundamental tone, pitch definitions, and longer sustain. It also brings a wider sweet spot so it is easier to produce optimum tone. The head caps are silver colored, contrasting nicely with the gold-colored tubes for easier visual reference.

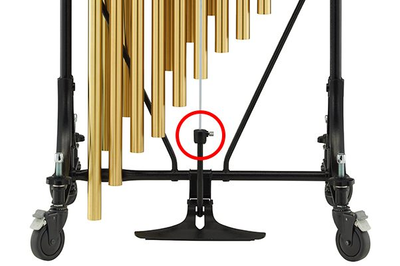

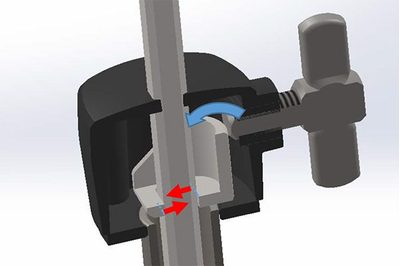

Damper Rod Clamp System (Patent applied for)

The damper rod clamp system has been redesigned for greater clamping strength and a more secure hold that prevents slippage when the damper pedal is pressed.

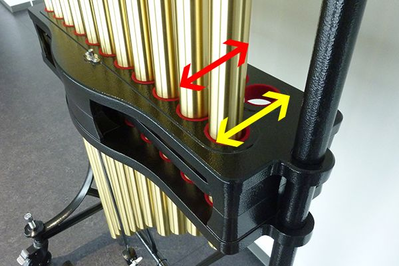

Damper Function

By aligning damper movement with the front-to-back motion of the chime tubes when struck, damping response has been notably improved. It is now easier to stop the extended sustain of the chime tubes at the most musically appropriate time.

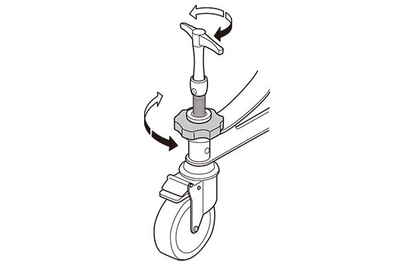

Casters

A swivel prevention function has been added to the caster locks. Furthermore, the YCH7018 now features height-adjustable casters. If the chime tubes are not properly centered in the damper they can touch the damper felt, reducing sustain and deadening the tone. Adjustable-height casters make it easy to level the instrument so that the chime tubes hang away from the damper felt.

Flexible Tube Arrangement

A full complement of damper holes is provided in the sharp/flat chime tube row, allowing any arrangement of chime tubes to be used. All available spaces can be used for a total of 21 tubes, if desired. Complete layout freedom is provided even when special-order chime tubes are used, since the position of the low C tube is not predetermined.

Note: The natural-note row of the YCH7018 does not provide sufficient height for longer chime tubes such as the YCHT7049A, YCHT7050A#, and YCHT7051B, so those tubes should be hung on the sharp/flat row or on a separate YCHS7006 stand.

If the short-length tubes such as YCHT7068E, 7069F, 7070F# or 7071G are hung on the sharp/flat row, the damper will not work properly since the lengths of those are not long enough to reach the damper unit. Please hang them on the natural row or use your hands to damp those extra tubes.

Standard arrangement

An example with D54 as the lowest note (high F# and G are special order Chime tubes)
