Innenraum-Bühnen / Gebetsstätten [klein]
Dieses kompakte und portable PA-System verfügt über genügend Leistung für Live-Auftritte auf kleineren Innenraum-Bühnen. In Abhängigkeit von der Größe und sonstigen Beschaffenheit des Auftrittsorts lassen sich damit bis zu 100 Zuschauer beschallen.

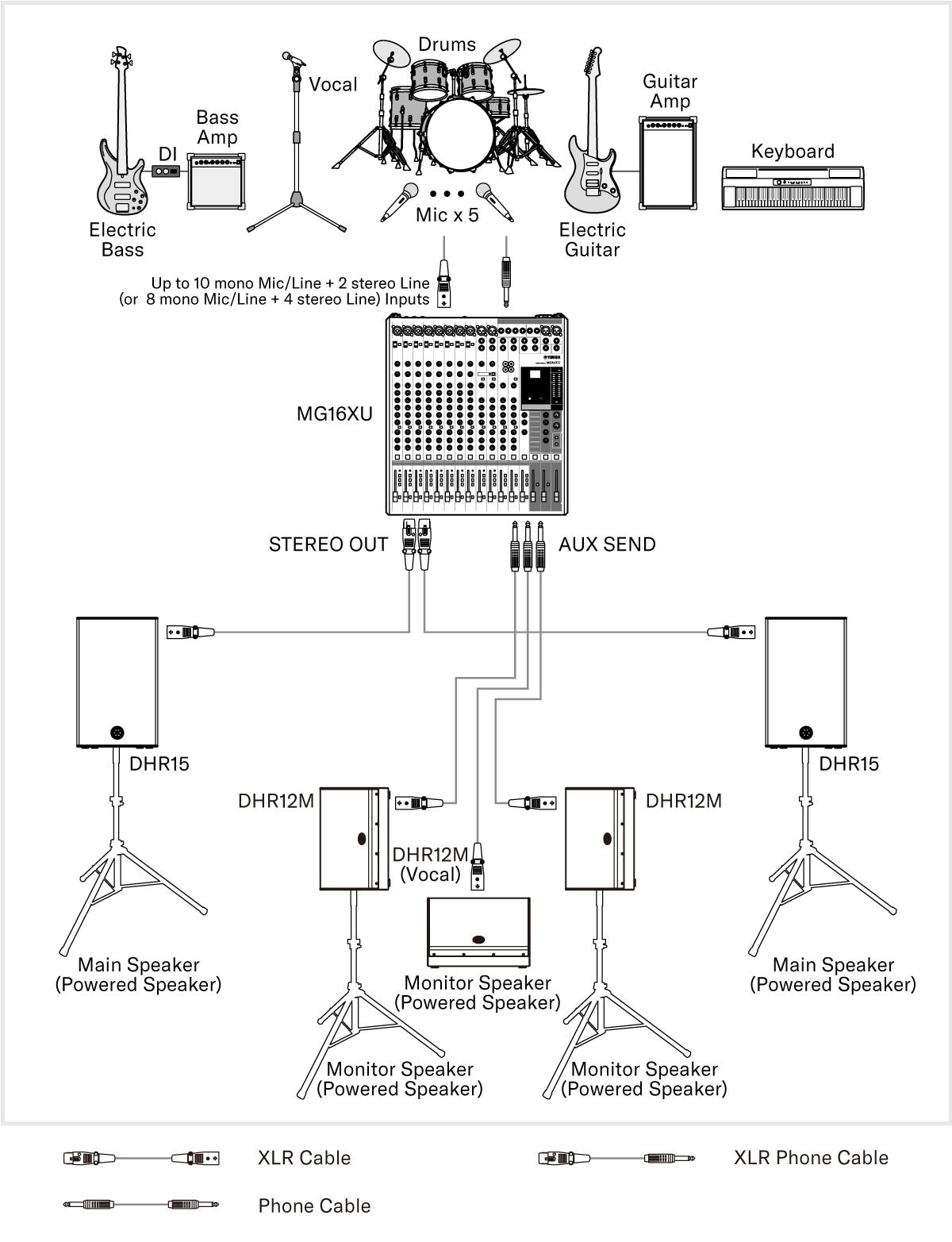

- The system consists of a mixing console, 2x powered speakers, a powered subwoofer for front of house sound, and 2x powered speakers for monitoring.
- High-quality reverb and delay add natural depth and vibrancy to the sound with remarkably natural feel. [Mixing console MG16XU]
- Speaker system features D-CONTOUR intelligent dynamic control feature for consistent clarity at any output level. [Powered loudspeaker DHR15]
- Floor monitor speaker is optimized with 57° wedge angle. [Powered loudspeaker DHR12M]
| Category | Model Name | Qty |
|---|---|---|
| Mixing Console | MG16XU | 1 |
| Power Amplifier | - | - |
| Main Speaker | DHR15 (Powered Speaker) | 2 |
| Subwoofer | - | - |
| Monitor Speaker | DHR12M (Powered Speaker) | 3 |
System
Tipps

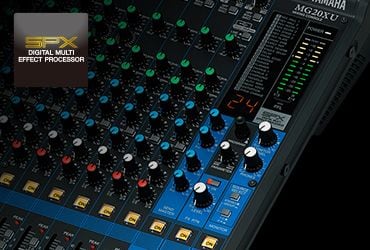

Integrierte SPX Digitaleffekte
Yamaha verbaut im MG16XU den gefeierten digitalen SPX Multieffektprozessor, der Ihren Mix mit einem umfassenden Angebot von insgesamt 24 editierbaren Digitaleffekten aufwerten kann. Damit verleihen Sie einer Sprachdarbietung mehr Tiefe oder der Live- Performance einer Band mehr Farbe und Atmosphäre. Insbesondere die hochwertigen Reverb- und Delay-Effekte sorgen für eine außerordentlich realistische Räumlichkeit.
Coaxial Compression Driver
DHR12M is the first Yamaha speaker to feature a coaxial compression driver for improved clarity and smoother frequency response for floor monitoring.

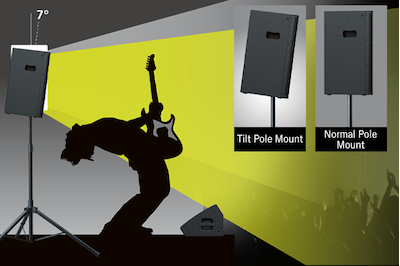

Dual-Angle Pole Mount Socket
Depending on the venue, sometimes your mix can fall prey to low ceilings or other room attributes that can impede a clear, even mix and detract from the audiences' listening experience significantly. The DHR15's pole mount socket offers two positions - 0° or -7° - to direct the acoustic energy away from reflective surfaces and on to your audience where it belongs.
Produktinformationen

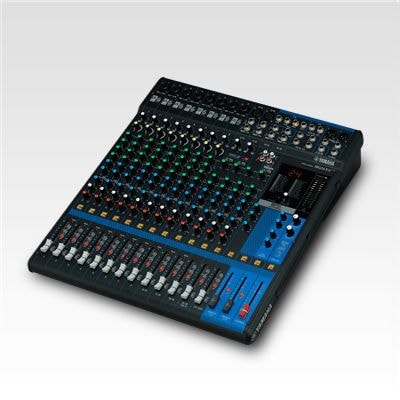

MG16XU
16-Channel Mixing Console
- Max. 10 Mic / 16 Line Inputs (8 mono + 4 stereo)
- 4 GROUP Buses + 1 Stereo Bus / 4 AUX (incl. FX)
- 1-Knob compressors
- High-grade effects: SPX with 24 programs
- 24-bit/192kHz 2in/2out USB Audio functions
- Rack Mount Kit included
- MG REC/PLAY, Cubase AI and Cubasis LE available

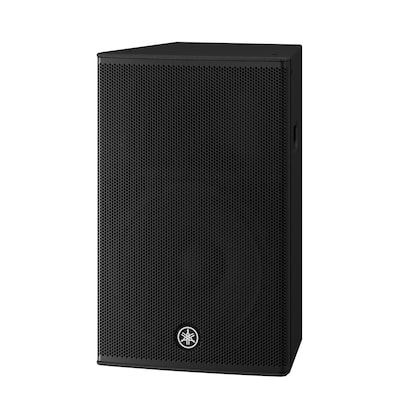

DHR15
15” 2-way powered loudspeaker
- 1000 W Class-D amplifiers
- Maximum 131 dB SPL (peak)
- D-CONTOUR multi band dynamic processor
- Easy-to-use onboard 2-channel mixer
- Compact and lightweight (24.0 kg / 52.9 lbs)
- Durable plywood enclosure with polyurea coating
- Dual-Angle 35 mm pole mount socket
- Integrated M10 rigging points for suspended applications
DHR12M
12” 2-way powered loudspeaker
- 1000 W Class-D amplifiers
- Coaxial compression driver
- Maximum 129 dB SPL (peak)
- D-CONTOUR multi band dynamic processor
- Easy-to-use onboard 2-channel mixer
- Compact and lightweight (16.5 kg / 36.4 lbs)
- Low profile and durable plywood enclosure with polyurea coating
- 35 mm pole mount socket
