Guitar
Kann gescrollt werden
| General Specifications | General | Construction | Bolt-on | Bolt-on |
|---|---|---|---|---|
| Scale Length | 25-1/2" (648.0 mm) | 25-1/2" (648.0 mm) | ||
| Body | Body Materials | Basswood | Basswood | |
| Body Finish | Gloss Polyurethane | Gloss Polyurethane | ||
| Neck | Neck Materials | Maple | Maple | |
| Neck Finish | Satin Polyurethane | Satin Polyurethane | ||
| Fingerboard Materials | Rosewood or Laurel | Rosewood or Laurel | ||
| Fingerboard Radius | 13-3/4" (350 mm) | 13-3/4" (350 mm) | ||
| Fret wire | Medium | Medium | ||
| Number of frets | 22 | 22 | ||
| Nut materials | Urea or Graphite | Urea or Graphite | ||
| Neck Width @ 0 Fret / 12th Fret | 41.0 / 51.4 mm | 41.0 / 51.4 mm | ||
| Thickness @1st Fret / 12th Fret | 20.9 / 22.9 mm | 20.9 / 22.9 mm | ||
| Electronics | Neck Pickup | Humbucker/Ceramic | Single Coil / Ceramic | |
| Middle Pickup | Single Coil / Ceramic | Single Coil / Ceramic | ||
| Bridge Pickup | Humbucker / Ceramic | Humbucker / Ceramic | ||
| Controls | Master Volume, Master Tone | Master Volume, Master Tone | ||
| Pickup Switch | 5-Position Lever Switch | 5-Position Lever Switch | ||
| Hardware | Bridge | Vintage Tremolo | Vintage Tremolo | |
| Tremolo Arm | Φ5 (Screw-in) | Φ5 (Screw-in) | ||
| String spacing | 10.5 mm | 10.5 mm | ||
| Tailpiece | - | - | ||
| Tuning Machines | Covered | Covered | ||
| Pickguard | 1-Ply White | 1-Ply White | ||
| Others | String gauge | 0.009-0.042 | 0.009-0.042 | |
| Case | Gig Bag | Gig Bag | ||
| Special Features | - | - | ||
Amplifier
Kann gescrollt werden
| Size/Weight | Dimensions | Width | 291mm | - |
|---|---|---|---|---|
| Height | 189mm | - | ||
| Depth | 300mm | - | ||
| Weight | Weight | 5 | - | |
| Control Interface | Other Controllers | Control Knobs | DRIVE／CLEAN switch, GAIN (DRIVE Ch), VOLUME (DRIVE Ch), VOLUME (CLEAN Ch), Bass, Middle, Treble | - |
| Hardware | Connections | NPUT(Phone Mono Jack), PHONES(Mini Jack), AUX IN(Mini Jack) | - | |
| Speakers | 16cm Full Range x 1 | - | ||
| Rated Output | 15W | - | ||

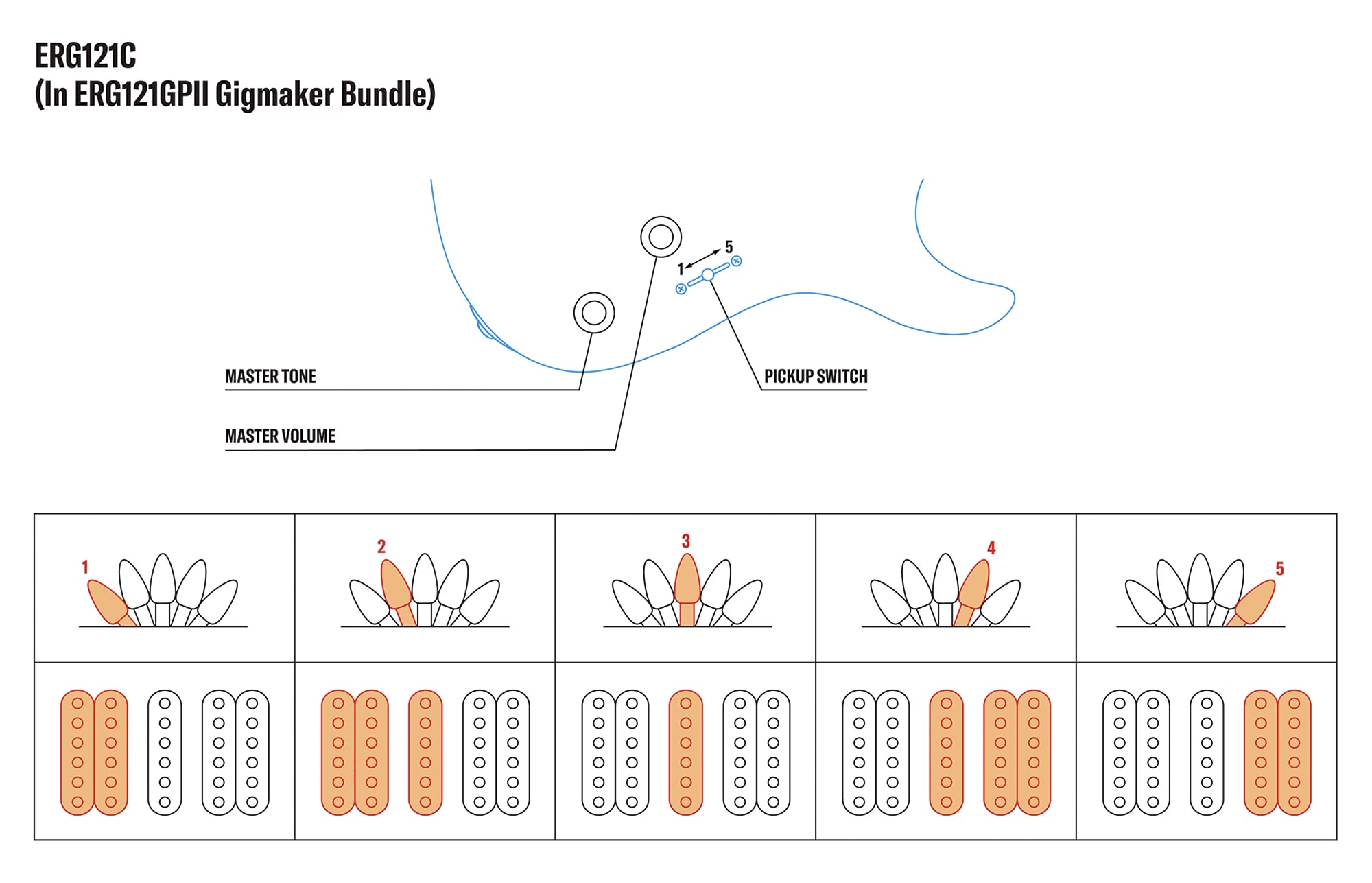

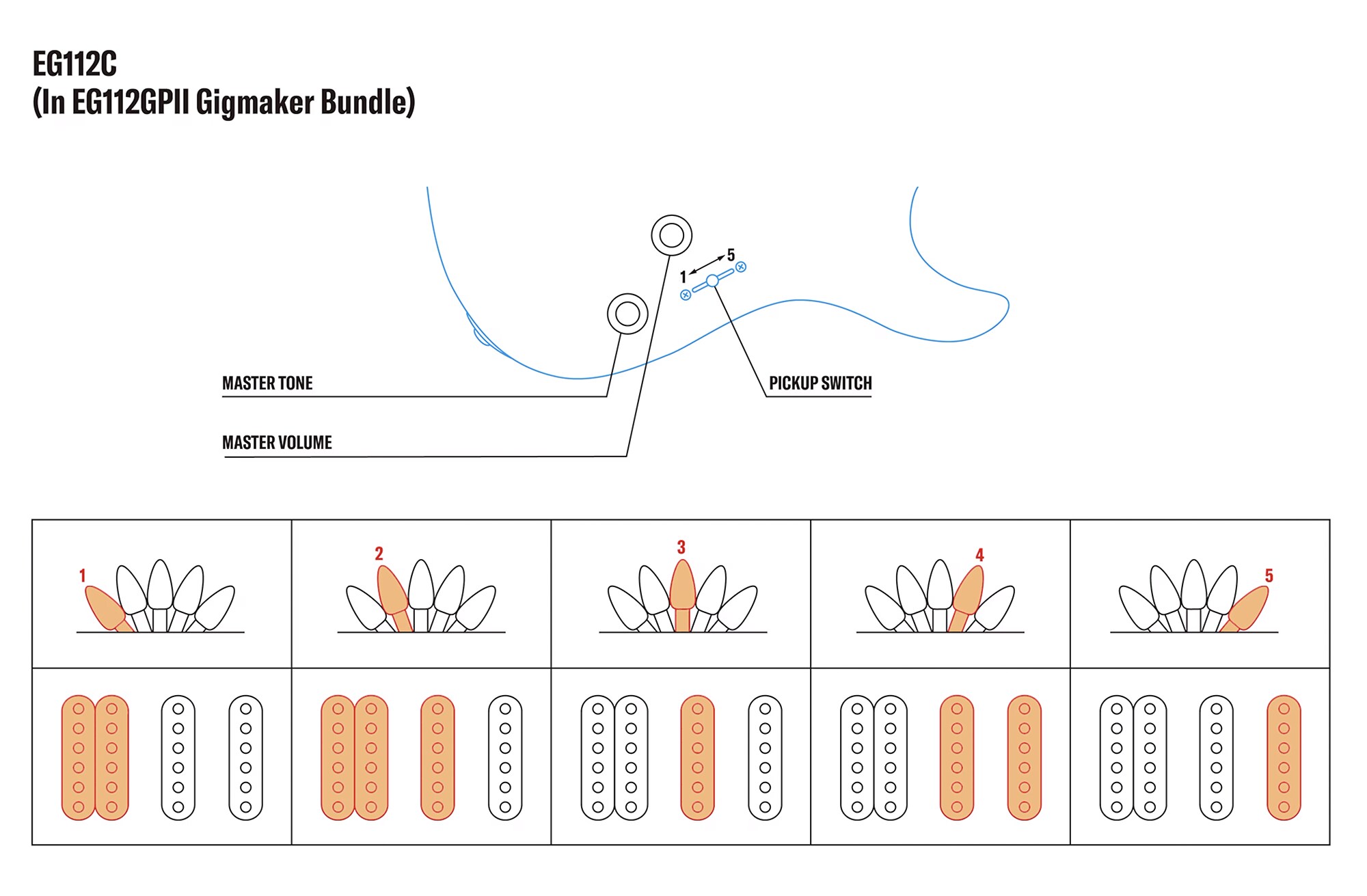

Control Systems
